CutBend for aksielle komponenter på tape

Kutte og bøyemaskin
Pris: 9.820 ,-
(eks. mva.)
  • Pinterest

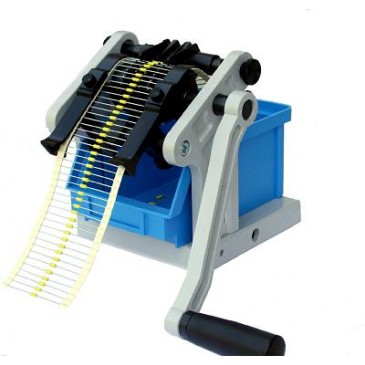

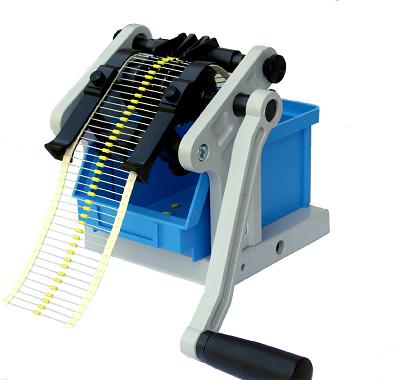

More than 35,000 samples of the proven CUTBEND machine for cutting and bending the axial leads for taped components are operated worldwide.

Thanks to it's high performance (up to 40,000 components per hour) and it's easy operation, this machine stands the test day after day. The machine amortizes in a short time thanks to it's exceptional cost- effectiveness. The CUTBEND can easily be adjusted and readjusted to different components and dimensions. The easy-to-replace cutting and bending wheels allow very thin (0.5mm) or very thick (1.2mm) leads to be processed. The well designed mechanism avoids axial tensile stress during processing and damage to delicate components by the slight staggering of the processing of both lead ends.

The CUTBEND is handy and can be mounted to any table thanks to it's screw clamp. The numerous accessories allow a full component processing system to be created on the basis of the CUTBEND.


Varenr.: Beskrivelse: Bentykkelse:
920.1000 Kutte bøye maskin (standard) 0.8 mm
920.1002 Kutte bøye maskin 0.5 mm
920.1004 Kutte bøye maskin 1.0 mm
920.1006 Kutte bøye maskin 1.2 mm
920.1008 Kutte maskin (FG hode) 0.8 mm
920.1010 Kutte bøye maskin (BG hode) 0.8 mm

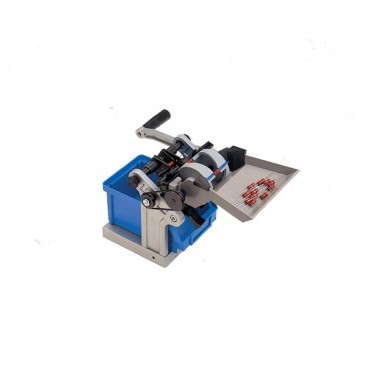

CB-3000 Feeder for løse komponenter

CutBend brosjyre (Cutbend_brosjyre.pdf, 1,786 Kb) [Last ned]

CutBend manual (Cutbend_manual.pdf, 326 Kb) [Last ned]

CB 3000 Loose Component Feeder (Cb3000.pdf, 196 Kb) [Last ned]

CutBend sparepart list (Cutbend_sparepart_list.pdf, 426 Kb) [Last ned]
