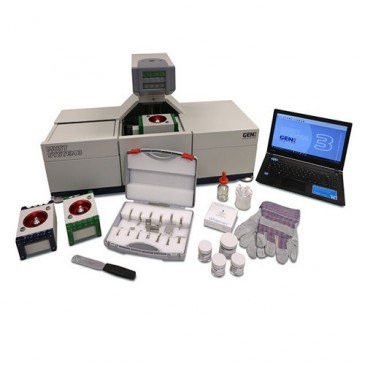

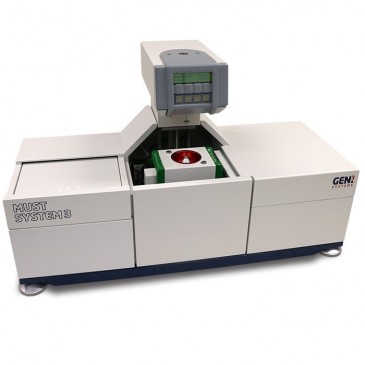

Loddbarhetstester MUST 3

Kontrollerer loddbarheten på komponenter i flg. IPC standarden.

Pris: Kontakt oss for pris
  • Pinterest

The MUST System 3 is the latest technological evolution of the original Multicore Universal Solderability Tester (MUST) that grandfathered all modern solderability test standards. It remains the unquestioned industry benchmark for solderability testing.

The MUST was originally developed by collaboration through an EU "Bright Project" together with NPL, Siemens and Philips. The NPL continue to assist in development of this test method.

Capable of measuring down to 0.001mN the MUST is THE most accurate and comprehensively equipped test system of its type in the world.

Gen3 Systems actively participates in standards development work with IEC, IPC, ISO, BSI and other official standards authorities to help maintain and develop solderability metrology.

The MUST 3 sets the standard - it performs solderability testing in accordance with all major international standards and comprises everything necessary for all forms of solderability tests.



TECHNICAL SPECIFICATIONS:
SOLDER TEMPERATURE: 0 – 350 °C (32 – 622 °F)
DIPPING SPEED: 0 – 30 mm/s (0 – 1.2 in/s)
IMMERSION DEPTH: 0 – 30 mm/s (0 – 1.2 in/s)
DWELL TIME: 0 – 30 s
MAXIMUM COMPONENT WEIGHT: 40 g
FORCE SAMPLING FREQUENCY: 1,000 Hz
GLOBULE SIZES: 1 mm (5 mg), 2 mm (25 mg), 3.2 mm (100 mg) or 4 mm (200 mg)
SOLDER BATH DIAMETER: 60 mm (2.38 in)
SOLDER BATH CAPACITY: 1 kg (2.2 lb)
POWER SUPPLY: 240 V, 50 Hz or 110 V, 60 Hz
POWER CONSUMPTION: 750 W
NET MACHINE WEIGHT: 45 kg (100 lb)
PACKED (SHIPPED) WEIGHT: 70 kg (115 lb)
PACKED (SHIPPING) SIZE: 970 x 730 x 540 mm (37.25 x 19 x 27 in)
VISUAL MAGNIFICATION (OPTIONAL):

Brosjyre MUST (MUST_Tri-Fold_Web.pdf, 954 Kb) [Last ned]

Blyfritt kit (GEN3-MUST_LeadFree_Accessories_P1_complete.pdf, 452 Kb) [Last ned]

Flyer MUST 3 (GEN3-MUST3_brosjyre_2.pdf, 830 Kb) [Last ned]
